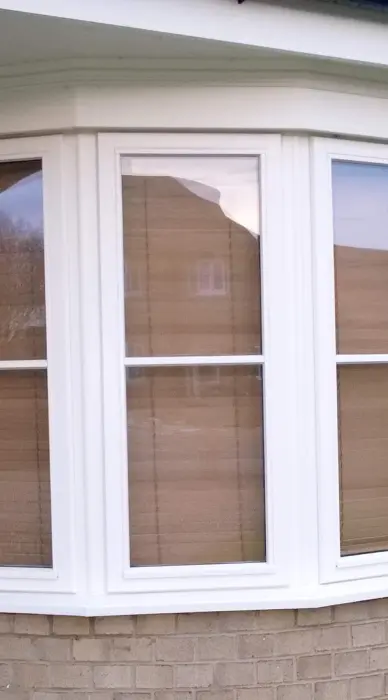

This range of stylish casement windows follows a modern style, which sets itself apart from the flush casement range that we offer.
These lipped casement windows ( otherwise known as stormproof windows from years gone by, has the design feature whereby the sash wraps round the front casement of the frame, to prevent any window driven rain directly reaching the sealing system of the window. It’s an ideal product in those remote locations that are vulnerable to the prevailing weather conditions.
Double Glazing | Triple Glazing | |
---|---|---|
Product Ref: | 58/66 | 66/74 |
U Values | Glass: 4/16/4 Ug = 1.1 w/m2K Whole Window: 4/16/4 = 1.4 w/m2K | Glass: 4/12/4/12/4 Ug = 0.7 w/m2K Whole Window: 4/12/4/12/4 = 1.1 w/m2K |
Frame Thickness / Width | 66 x 58mm | 74 x 58mm |
Sash Thickness / Width | 58 x 75mm | 66 x 75mm |
Sill Nosing Sizes Available | 40mm > 150mm | 40mm > 150mm |
Glazing Thickness Available | 4mm Single > 30mm Double | 4mm Single > 38mm Triple |
Air Permeability Class | 4 | – |
Acoustic Performance | 29dB | 30dB |
Secured By Design Available | Yes | Yes |
Bar Designs Available | Ogee Lamb | Ogee Lamb |
